    Marble Laser 6800kg CNC Marble Cutting Machine 800MM Blade 45 Deg

    Ask Lasest Price
    Brand Name : Hizar
    Model Number : HQQ-800B
    Certification : CE
    Supply Ability : 5000pcs/month
    Delivery Time : 30days
    Price : Negotiation
    • Product Details
    • Company Profile

    Marble Laser 6800kg CNC Marble Cutting Machine 800MM Blade 45 Deg

    380V/50HZ/ 450V/60HZ 18.5kw Saw Laser CNC Stone Cutting Machine


    1.Description


    1. Durable:

    Good quality steel is used as the mechanical parts and reliable imported electric parts are used to guarantee high reliability & durability.

    2. Precise:

    a, Crossbeam movement(Y-axis) along linear guide way with high precision.
    b, Z-axis movement by lead screw.
    c, Magnetic ruler is adopted for slicing measure.
    d, Laser device for accurate alignment.

    3. Use-friendly:

    a, Touch screen contral panel and all 3D movement is controlled by micro computer to realize automatic operation available.
    b, Both manual and automatic operation available.
    c, Worktable can rotate 90° or 360°(optional).

    4. Multi-functional:

    With optional sensor, profiling function can be added.

    Features:

    1.CNC system.

    2.Fast cutting speed.

    3.High precision.


    2.Specification


    Product name18.5kw 380V/50HZ/ 450V/60HZ Saw Laser CNC Stone Cutting Machine
    Blade DiameterΦ600-Φ800 mm
    Max.working dimensions (L*W*H)3200*2000*200 mm
    Workbench dimensions (L*W)3200*2000 mm
    Workbench tilting degree85-0
    Workbench rotating degree0-360;(each 45 rotate automatically)
    Main motor power18.5kw
    Water consumption3.5 m3/h
    Machine weight6800 kg

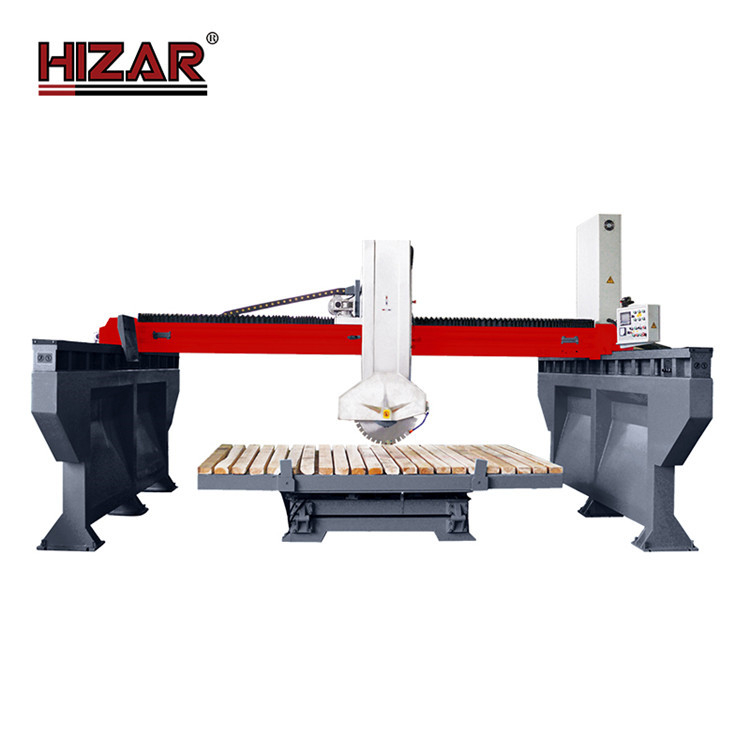

    3.Product Pictures





    Quality Marble Laser 6800kg CNC Marble Cutting Machine 800MM Blade 45 Deg for sale
