15 KW 3500*3500*2100mm CNC wire saw cutting&shaping machine Stone Quarry Machines

1. Descriptions:

The stone quarry machine has an independent guide rail on each of the four columns. The flywheel rises and falls along these guides. The flywheel works stably, which prolongs the service life of diamond rope saw. The flywheel tension has a stable, constant tensile mode to improve cutting accuracy. the stone quarry machine CNC system makes the man-machine interface simple and flexible,

and the stone quarry machine can process a variety of complex two-dimensional surfaces. The guide wheel adopts four layers of sealing protection system, which greatly improves the cutting precision. Linear cutting speed can be adjusted according to different cutting requirements. The cover is waterproof and highly durable.

1. The heavy-duty load-bearing structure, with four rails on each column, adjusts the balance through the roller, with less friction and higher precision.

2. lthe CNC stone quarry machine left and right frame through the steering device on the carriage frame to achieve synchronous lifting. The combination of lead screw and double nut improves the lifting accuracy.

3. For theabout CNC stone machine cantilever part, first adjust the regulating wheel distance between the lead screw and the rod, and the regulating wheel is controlled by CNC. Secondly, in order to make the cutting direction of the diamond wire rope coincide, the reducer controls the rotation Angle of the regulating wheel.

2. Specifications:

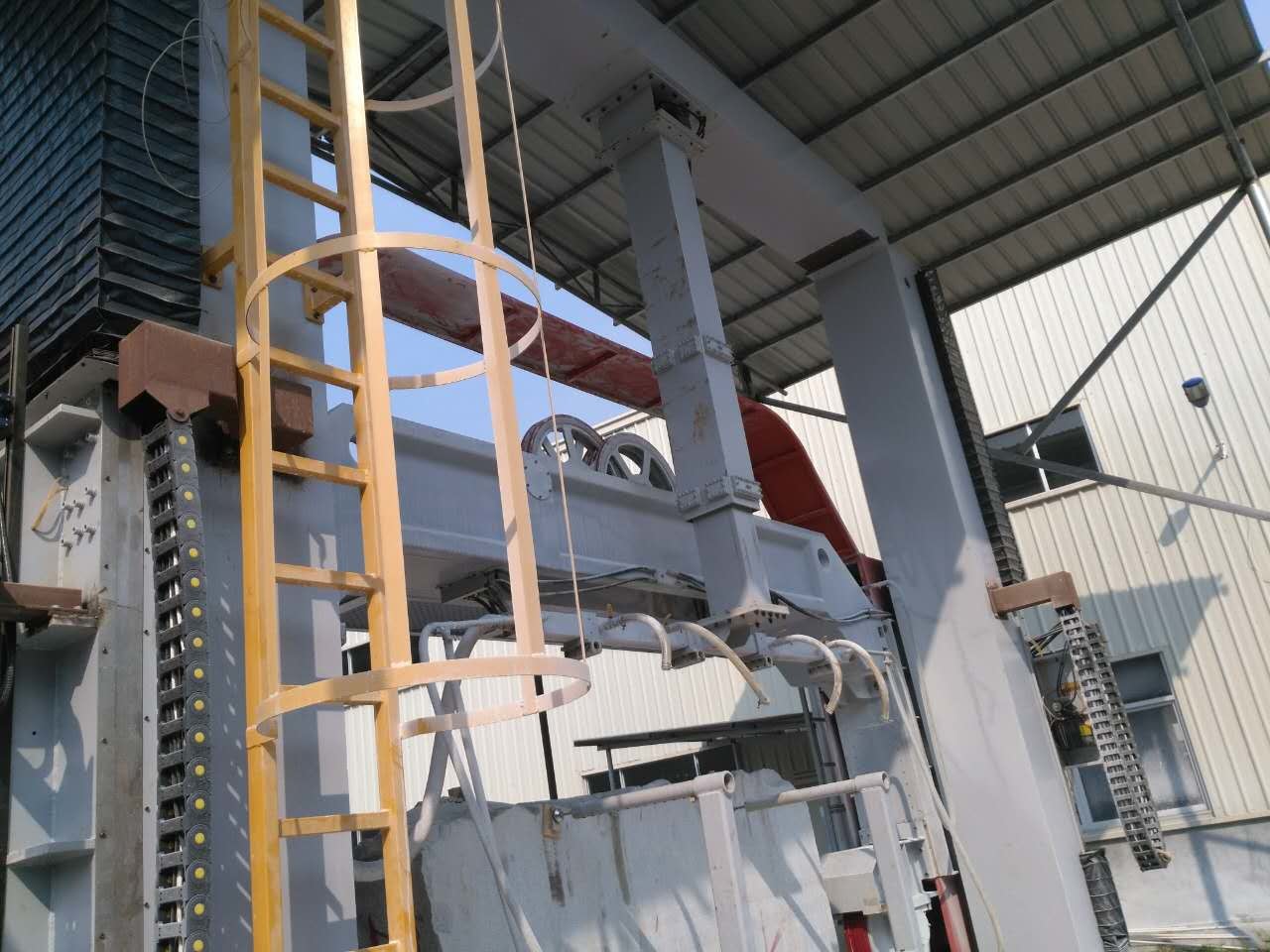

3.More pictures:

4.FAQ

Q: What is the minimum ordering quantity?

A: Generally speaking, we can accept any quantity. However, please be aware that extra amount of fees might occur due to small quantity of small goods through express.

Q: What is I don't have any experience of using those tools or machines?

A: We strongly recommend you to know well about your ordered tools or machines to avoid further issues caused by inexperienced set up or maintenance. Somehow, we're able to provide instruction manual for free if asked.

Q: How do I know if you really are a manufacturer?

A: First of all, basic information about us can be found on www.hizar.com or our alibaba page. Secondly, as a manufacturer established since 1983, we welcome all customers' visiting to our factory. Those who have plans visiting China and land at Shanghai can have a small trip to our factory in few hours since Suzhou is really close to Shanghai. No extra fees except train tickets will be charged.

Q:What if I find out that delivered goods don't match my expectation?

A: First of all, as an experienced manufacturer since 1983, we barely receive any complains from customers. Nevertheless, assuming if any customer is unsatisfied with delivered goods, we will try to contact to our customers ASAP for few confirmations such as identification of information given by customers, no damage done to goods during transportation or maintenance. After everything is figured, settlement should be done in proper procedures.
