    22kw 1590mm Fly Wheel Stone CNC Machines 360 Deg Wire Saw Cutting Machine

    Ask Lasest Price
    Brand Name : Hizar
    Model Number : HCNC
    Certification : CE
    Supply Ability : 5000pcs/month
    Delivery Time : 30days
    Price : Negotiation
    • Product Details
    • Company Profile

    22kw 1590mm Fly Wheel Stone CNC Machines 360 Deg Wire Saw Cutting Machine

    22KW 380V/50Hz;450V/60Hz CNC Wire Saw Cutting&Shaping Machine


    Description


    Stone CNC Machine is a kind of three-dimensional numerical control machine tools,Stone CNC Machines can carry on the processing of stone countertops, Stone CNC Machine with high precision The performance of the speed is quick and efficient. Stone CNC Machine is made up of 16 surface guide rail, 28 of roller structure .The host PLC frequency conversion system, guided by S type two waterproof structure .Stone CNC Machine can not only be used to cut various types of column skin, column, number and other special-shaped, but also can cut pipes, trimming .Stone CNC Machine has two types of single and multiple.

    Stone CNC Machine has many advantages, such as:

    1,It has high working efficiency and convenient operation and low production cost.

    2,Stone CNC Machine adopts microcomputer control and can frequency control

    3,Stone CNC machine adopts PLC intelligent double frequency converter system, can automatically adjust the cutting speed of stone CNC machine tool and the tension of stone CNC machine saw line, to achieve humanization and highly intelligent cutting process

    4,Stone CNC Machine has a wide range of applications with drawings input function.


    Specification


    Product name22KW 380V/50Hz;450V/60Hz CNC Wire Saw Cutting&Shaping Machine
    TypeStone Cutting Machine
    Voltage380V/50Hz;450V/60Hz
    Power22kw
    Warranty1 year
    Cutting thickness (max)300mm
    Machinery Test Report:Provided
    Linear speed0-50M/S
    Rope length14.4m
    Main motor7.5kw
    Fly wheel diameter1590mm
    ProductionMarble:1.5-2.5m2/h, Granite:0.8-1.2m2/h
    Max. processing size3200*2000*1500mm
    Workable size2500*1300mm

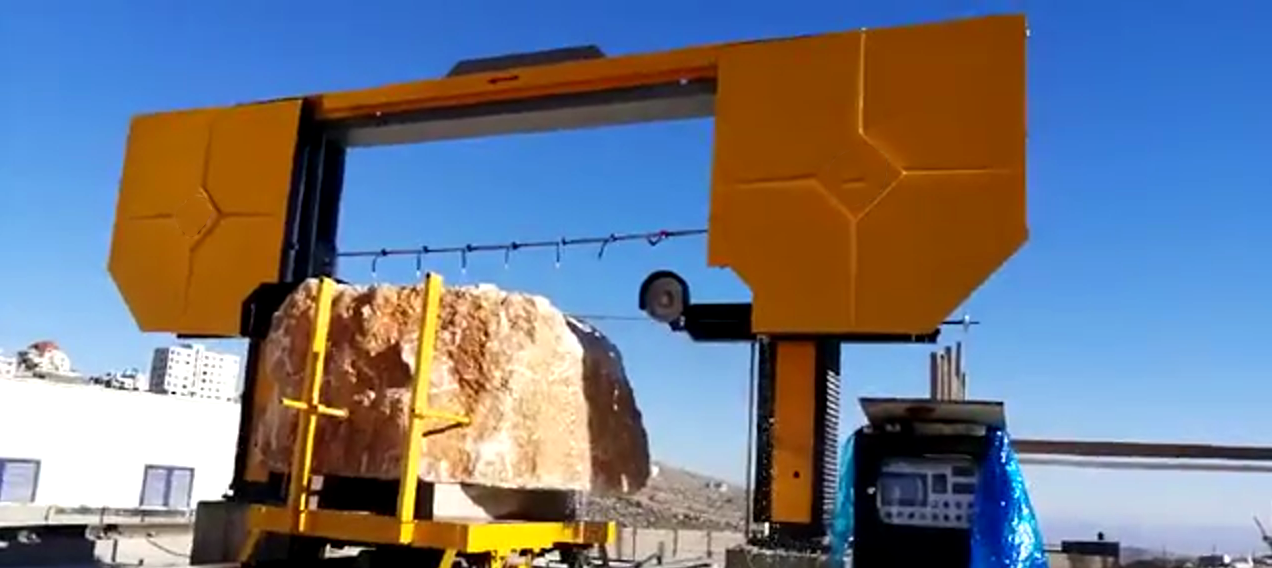

    Product Pictures

    Quality 22kw 1590mm Fly Wheel Stone CNC Machines 360 Deg Wire Saw Cutting Machine for sale
